Sync​​ Tradeshow​​ Server​​ Laptop

Sync​​ Tradeshow​​ Server​​ Laptop


  • How​​ to​​ connect​​ the​​ VPN​​ at​​ the​​ Laptop​​ Server


*​​ If​​ you​​ have​​ different​​ VPN​​ other​​ than​​ SonicWALL,​​ please​​ consult​​ with​​ your​​ IT​​ .

*​​ If​​ you​​ do​​ not​​ have​​ VPN,​​ you​​ can​​ ignore​​ VPN​​ section.

1)​​ Open​​ Sonic​​ WALL​​ Global​​ VPN​​ Client​​ by​​ double-clicking​​

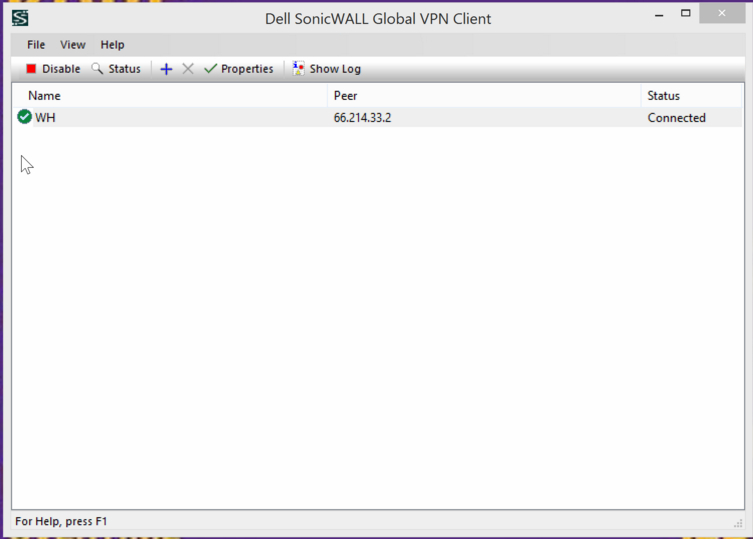

2)​​ Check​​ the​​ connection​​ is​​ enabled.​​ If​​ the​​ Status​​ is​​ connected,​​ it​​ means​​ enabled.​​

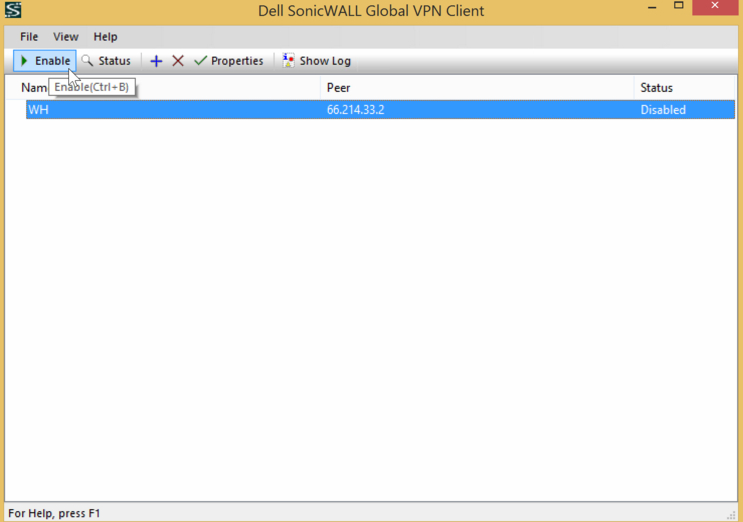

If​​ the​​ status​​ is​​ disabled,​​ Click​​ “Enable”​​





While​​ attempting​​ to​​ connect​​ to​​ a​​ SonicWall​​ VPN​​ with​​ the​​ SonicWall​​ client,​​ if​​ you​​ keep​​ getting​​ prompted​​ for​​ a​​ Dialup​​ Phone​​ Book​​ entry,
change​​ connection​​ property​​ following​​ below​​ procedures.



1)​​ Open​​ the​​ SonicWall​​ VPN​​ Global​​ Client

2)​​ Click​​ on​​  a​​ connection​​ to​​ change​​ and​​ Click​​ Properties​​ toolbar​​ icon

               ​​

3)​​ Click​​ Peers​​ tab​​ and​​ select​​ a​​ peer​​ to​​ edit​​ and​​ click​​ “Edit…”​​ button

               ​​



3)​​ Under​​ Interface​​ Selection,​​ Choose​​ "LAN​​ Only"​​ rather​​ than​​ "Automatic"​​ in​​ the​​ drop​​ down​​ list.

               ​​



  • How​​ to​​ Synchronize​​ DB​​ at​​ the​​ Laptop​​ Server​​

*​​ Sync​​ Image​​ only​​ works​​ when​​ your​​ VPN​​ is​​ connected​​ and​​ enabled.

Database​​ synchronization​​ is​​ scheduled​​ to​​ run​​ automatically​​ ever​​ one​​ hour.​​ However​​ you​​ might​​ want​​ to​​ run​​ synchronization​​ manually.​​ Follow​​ below​​ procedures.

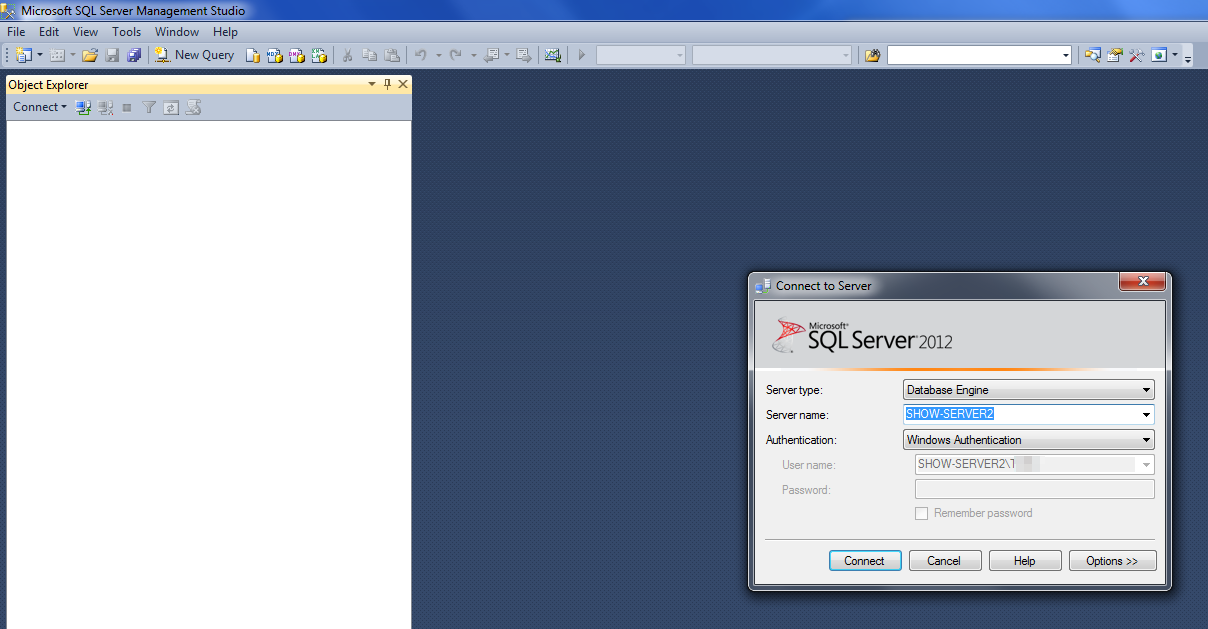

1)​​ Open​​ SQL​​ Server​​ management​​ Studio​​

 ​​ ​​ ​​​​ Log​​ in​​ with​​ your​​ account​​

-​​ Server​​ name:​​ your​​ computer​​ name​​

-​​ Authentication:​​ Select​​ “Windows​​ Authentication”​​





















2)​​ Click​​ “Replication”​​ [1]

 ​​ ​​ ​​​​ Click​​ +​​ button​​ on​​ “Local​​ Subscription”​​ [2]

 ​​ ​​ ​​​​ Right​​ Click​​ the​​ folder​​ under​​ the​​ “Local​​ Subscription”​​ [3]

 ​​ ​​ ​​​​ Click​​ “View​​ Synchronization​​ Status”​​ [4]

4

3

2

1

3)​​ Click​​ “Start”​​

4)​​ Click​​ “Close”​​ when​​ it’s​​ done

 -​​ If​​ you​​ want​​ to​​ check​​ the​​ sync​​ status,​​ click​​ View​​ Job​​ History ​​​​

  • How​​ to​​ synchronize​​ the​​ images​​ at​​ the​​ Laptop​​ Server.​​

*​​ Sync​​ N41​​ only​​ works​​ when​​ your​​ VPN​​ is​​ connected​​ and​​ enabled.

*​​ Please​​ do​​ not​​ Sync​​ N41​​ if​​ you​​ are​​ not​​ instructed​​ by​​ N41​​ staff.

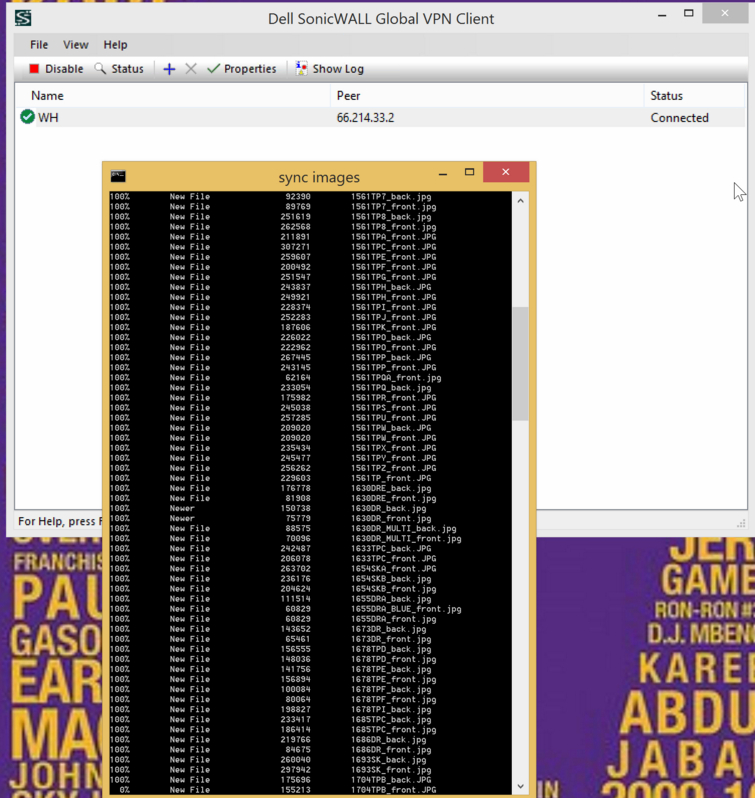

1)​​ Double​​ Click​​ “Sync​​ Images​​

​​



2)​​ Once​​ you​​ click​​ the​​ program,​​ it​​ will​​ sync​​ images​​ automatically​​

 ​​ ​​ ​​​​ When​​ it’s​​ done,​​ it​​ will​​ be​​ closed.​​



  • How​​ to​​ update​​ N41​​ to​​ the​​ version​​ in​​ main​​ office



1)​​ Double​​ Click​​ “Sync​​ N41”

2)​​ Once​​ you​​ click​​ the​​ program,​​ it​​ will​​ sync​​ images​​ automatically​​

 ​​ ​​ ​​​​ When​​ it’s​​ done,​​ it​​ will​​ be​​ closed

Appendix

1.​​ When​​ your​​ email​​ is​​ not​​ working​​ properly

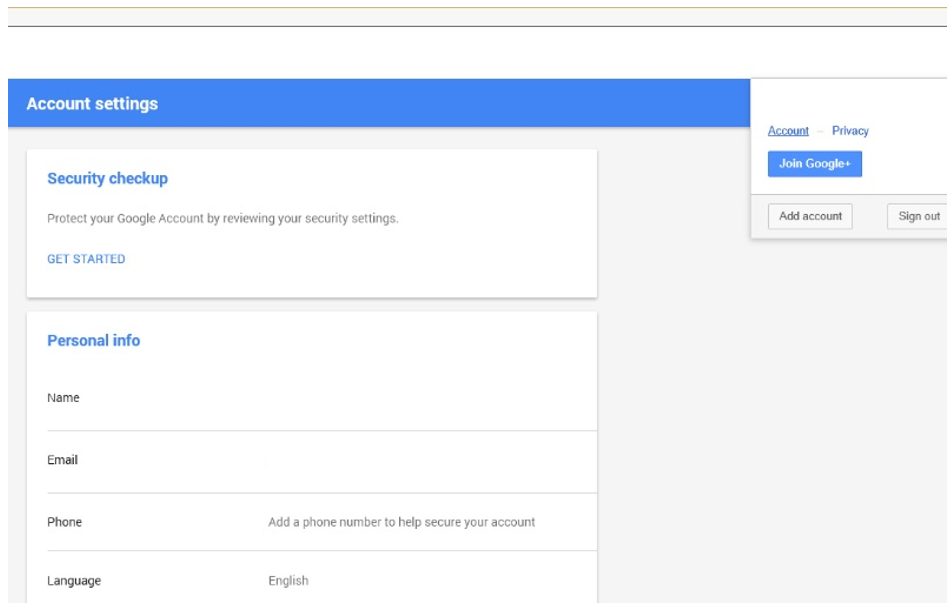

Log​​ in​​ with​​ your​​ account,​​ go​​ to​​ setting​​

Click​​ “Account”

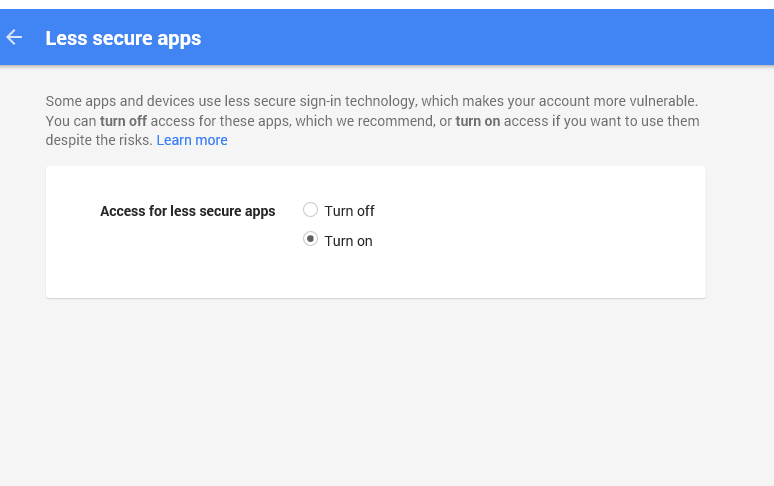

Click​​ “Access​​ for​​ less​​ secure​​ apps”



Check​​ “Turn​​ on”​​







2.​​ When​​ your​​ print​​ is​​ not​​ working​​

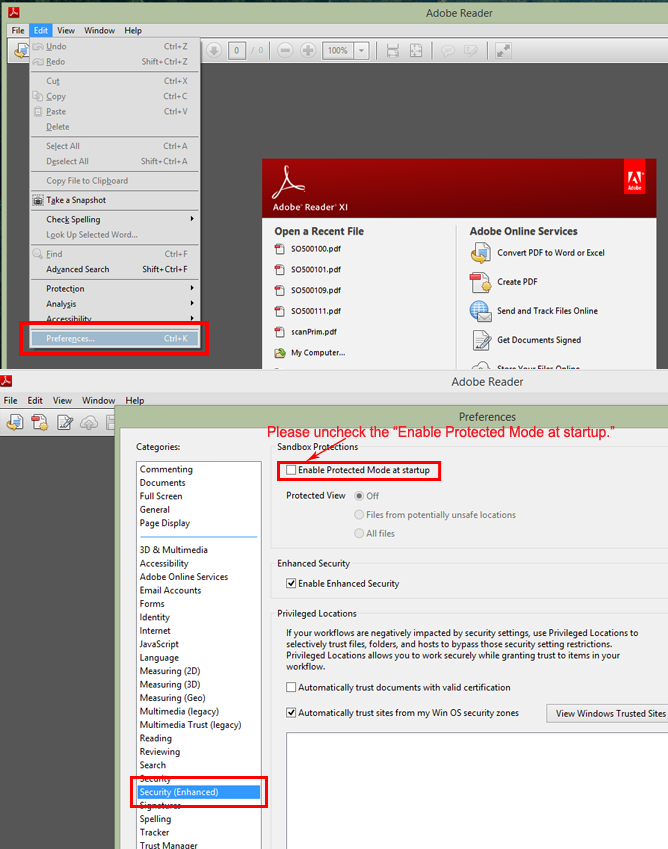

Open​​ adobe​​ reader,​​ click​​ preferences

3.​​ When​​ you​​ can​​ not​​ log​​ in​​ to​​ I​​ pod
